1:12V POE splitter
2:10/100M
3:male and female support

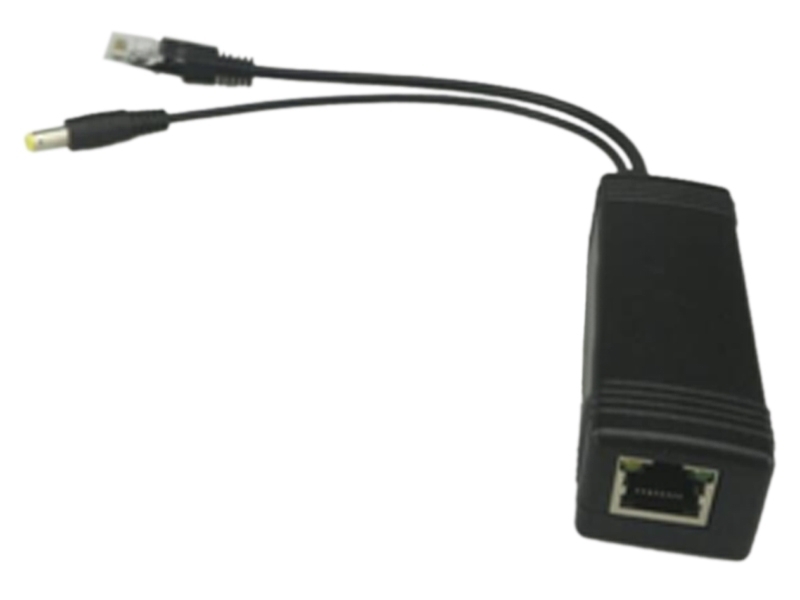

15W PoE PD Splitter Power 15.4W Output 12V Input DC48V

Product Model

Product Description

DVOP-P10

15W PD POE splitter

1) Support the IEEE 802.3af the Power over Ethernet standard.

2) Support 10/100Mbps data transmission.

3) PD receiving end supportsa variety of voltage of 12V-48V transfer, user-friendly UPS DC power supply.

4) Provide 12V voltage to adapt to a variety of network equipment.

5) Circuit isolation protection, effective protection of electrical equipment.

6) High quality design, guarantees the stability and reliability of the equipment in work.

Technical Specification:

POE Parameters

1) Maximum Power: 15.4W (IEEE 802.3af)

2) Input voltage :44-57V Output voltage: 12V

3) Power pin: Support both 1/2+,3/6- and 4/5+,7/8-

Connect Port

1) Input: an input RJ45 interface

2) Output: an output RJ45 connector and a DC output interface

3) Data transfer rate: 10/100Mbps

4) The maximum transmission distance: 100 meters

Network standards

IEEE802.3i 10 BASE-T,

IEEE802.3i 100 BASE-TX,

IEEE802.3x flow control

IEEE802.3af /IEEE802.3at

LED indicator

PoE, DC output

Output

12V

Certificate

CE,FCC,ROHS

Working Term.

-15°C-60°C

Storage Term.

-40°C-70°C

Operating Humidity

20%-85%,Non-condensing

Size

94*70*26 mm (L*W*H)

Weight

80g
